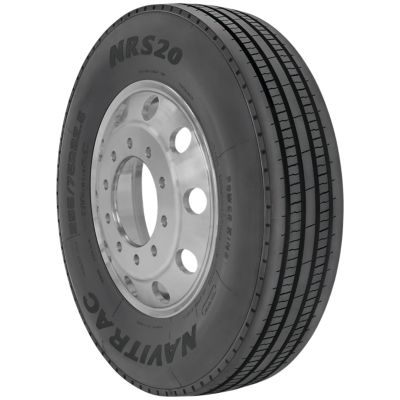

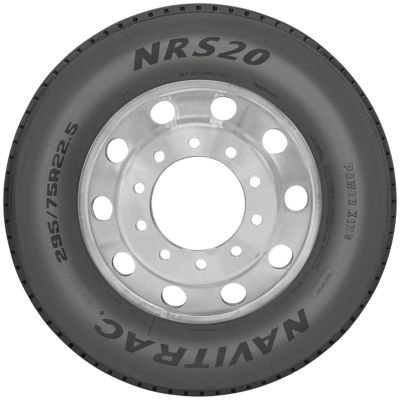

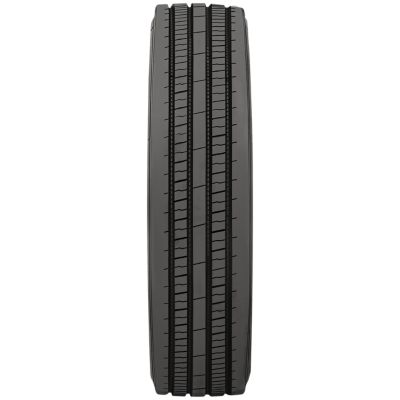

The Navitrac NRS20 Regional All Position is best suited for on highway steer and trailer positions. The NRS20 features a broad 5 rib tread pattern to provide precise handling and excellent stability. Wide circumferential grooves efficiently evacuate water from the tread area and feature “stone ejectors” to prevent stone drilling for a long casing life and improved retreadability. The NRS20 is ideally suited for regional and pick-up/delivery applications.
| Article # | Size | LR/PR | ServiceDescription | Tread Depth(32NDS) | Type | R.W.(INCH) | O.D.(INCH) | S.W.(INCH) | SingleMax Load(lbs) | DoubleMax Load(lbs) | Infl. P.(psi) |
|---|
| PWKG-NRS20215175 | 215/75R17.5 | H/16 | 135/133L | 14 | TL | 6.00 | 30.2 | 8.3 | 4805 | 4540 | 123 |
| PWKG-NRS20235175 | 235/75R17.5 | H/16 | 143/141L | 14 | TL | 6.75 | 31.4 | 9.2 | 6005 | 5675 | 125 |
| PWKG-NRS20225195 | 225/70R19.5 | G/14 | 128/126L | 14 | TL | 6.75 | 31.9 | 8.9 | 3970 | 3750 | 110 |
| PWKG-NRS20245195 | 245/70R19.5 | H/16 | 135/133L | 15 | TL | 7.50 | 33.0 | 9.8 | 4805 | 4540 | 120 |
| PWKG-NRS2011225H | 11R22.5 | H/16 | 146/143M | 18 | TL | 8.25 | 41.5 | 11.0 | 6610 | 6005 | 120 |
| PWKG-NRS20255225 | 255/70R22.5 | H/16 | 140/137M | 16 | TL | 7.50 | 36.6 | 10.0 | 5510 | 5070 | 120 |
| PWKG-NRS20275225 | 275/70R22.5 | J/18 | 148/145M | 17 | TL | 8.25 | 37.7 | 10.8 | 6940 | 6395 | 130 |
| PWKG-NRS20295225 | 295/75R22.5 | H/16 | 146/143M | 18 | TL | 9.00 | 39.9 | 11.7 | 6610 | 6005 | 120 |
| PWKG-NRS20315225 | 315/80R22.5 | L/20 | 156/153L | 19 | TL | 9.00 | 42.4 | 12.3 | 8820 | 8050 | 123 |
| PWKG-NRS2011245H | 11R24.5 | H/16 | 149/146M | 18 | TL | 8.25 | 43.5 | 11.0 | 7160 | 6610 | 120 |
| PWKG-NRS20285245 | 285/75R24.5 | G/14 | 144/141M | 18 | TL | 8.25 | 41.3 | 11.1 | 6175 | 5675 | 110 |
| ARTICLE # | PWKG-NRS20215175 |
| SIZE | 215/75R17.5 |
| LR/PR | H/16 |
| SERVICE DESCRIPTION | 135/133L |
| TREAD DEPTH (32NDS) | 14 |
| TYPE | TL |
| R.W. (INCH) | 6.00 |
| O.D. (INCH) | 30.2 |
| S.W. (INCH) | 8.3 |
| SINGLE MAX LOAD (LBS) | 4805 |
| DOUBLE MAX LOAD (LBS) | 4540 |
| INFL.P. (PSI) | 4805 |
| ARTICLE # | PWKG-NRS20235175 |
| SIZE | 235/75R17.5 |
| LR/PR | H/16 |
| SERVICE DESCRIPTION | 143/141L |
| TREAD DEPTH (32NDS) | 14 |
| TYPE | TL |
| R.W. (INCH) | 6.75 |
| O.D. (INCH) | 31.4 |
| S.W. (INCH) | 9.2 |
| SINGLE MAX LOAD (LBS) | 6005 |
| DOUBLE MAX LOAD (LBS) | 5675 |
| INFL.P. (PSI) | 6005 |
| ARTICLE # | PWKG-NRS20225195 |
| SIZE | 225/70R19.5 |
| LR/PR | G/14 |
| SERVICE DESCRIPTION | 128/126L |
| TREAD DEPTH (32NDS) | 14 |
| TYPE | TL |
| R.W. (INCH) | 6.75 |
| O.D. (INCH) | 31.9 |
| S.W. (INCH) | 8.9 |
| SINGLE MAX LOAD (LBS) | 3970 |
| DOUBLE MAX LOAD (LBS) | 3750 |
| INFL.P. (PSI) | 3970 |
| ARTICLE # | PWKG-NRS20245195 |
| SIZE | 245/70R19.5 |
| LR/PR | H/16 |
| SERVICE DESCRIPTION | 135/133L |
| TREAD DEPTH (32NDS) | 15 |
| TYPE | TL |
| R.W. (INCH) | 7.50 |
| O.D. (INCH) | 33.0 |
| S.W. (INCH) | 9.8 |
| SINGLE MAX LOAD (LBS) | 4805 |
| DOUBLE MAX LOAD (LBS) | 4540 |
| INFL.P. (PSI) | 4805 |
| ARTICLE # | PWKG-NRS2011225H |
| SIZE | 11R22.5 |
| LR/PR | H/16 |
| SERVICE DESCRIPTION | 146/143M |
| TREAD DEPTH (32NDS) | 18 |
| TYPE | TL |
| R.W. (INCH) | 8.25 |
| O.D. (INCH) | 41.5 |
| S.W. (INCH) | 11.0 |
| SINGLE MAX LOAD (LBS) | 6610 |
| DOUBLE MAX LOAD (LBS) | 6005 |
| INFL.P. (PSI) | 6610 |
| ARTICLE # | PWKG-NRS20255225 |
| SIZE | 255/70R22.5 |
| LR/PR | H/16 |
| SERVICE DESCRIPTION | 140/137M |
| TREAD DEPTH (32NDS) | 16 |
| TYPE | TL |
| R.W. (INCH) | 7.50 |
| O.D. (INCH) | 36.6 |
| S.W. (INCH) | 10.0 |
| SINGLE MAX LOAD (LBS) | 5510 |
| DOUBLE MAX LOAD (LBS) | 5070 |
| INFL.P. (PSI) | 5510 |
| ARTICLE # | PWKG-NRS20275225 |
| SIZE | 275/70R22.5 |
| LR/PR | J/18 |
| SERVICE DESCRIPTION | 148/145M |
| TREAD DEPTH (32NDS) | 17 |
| TYPE | TL |
| R.W. (INCH) | 8.25 |
| O.D. (INCH) | 37.7 |
| S.W. (INCH) | 10.8 |
| SINGLE MAX LOAD (LBS) | 6940 |
| DOUBLE MAX LOAD (LBS) | 6395 |
| INFL.P. (PSI) | 6940 |
| ARTICLE # | PWKG-NRS20295225 |
| SIZE | 295/75R22.5 |
| LR/PR | H/16 |
| SERVICE DESCRIPTION | 146/143M |
| TREAD DEPTH (32NDS) | 18 |
| TYPE | TL |
| R.W. (INCH) | 9.00 |
| O.D. (INCH) | 39.9 |
| S.W. (INCH) | 11.7 |
| SINGLE MAX LOAD (LBS) | 6610 |
| DOUBLE MAX LOAD (LBS) | 6005 |
| INFL.P. (PSI) | 6610 |
| ARTICLE # | PWKG-NRS20315225 |
| SIZE | 315/80R22.5 |
| LR/PR | L/20 |
| SERVICE DESCRIPTION | 156/153L |
| TREAD DEPTH (32NDS) | 19 |
| TYPE | TL |
| R.W. (INCH) | 9.00 |
| O.D. (INCH) | 42.4 |
| S.W. (INCH) | 12.3 |
| SINGLE MAX LOAD (LBS) | 8820 |
| DOUBLE MAX LOAD (LBS) | 8050 |
| INFL.P. (PSI) | 8820 |
| ARTICLE # | PWKG-NRS2011245H |
| SIZE | 11R24.5 |
| LR/PR | H/16 |
| SERVICE DESCRIPTION | 149/146M |
| TREAD DEPTH (32NDS) | 18 |
| TYPE | TL |
| R.W. (INCH) | 8.25 |
| O.D. (INCH) | 43.5 |
| S.W. (INCH) | 11.0 |
| SINGLE MAX LOAD (LBS) | 7160 |
| DOUBLE MAX LOAD (LBS) | 6610 |
| INFL.P. (PSI) | 7160 |
| ARTICLE # | PWKG-NRS20285245 |
| SIZE | 285/75R24.5 |
| LR/PR | G/14 |
| SERVICE DESCRIPTION | 144/141M |
| TREAD DEPTH (32NDS) | 18 |
| TYPE | TL |
| R.W. (INCH) | 8.25 |
| O.D. (INCH) | 41.3 |
| S.W. (INCH) | 11.1 |
| SINGLE MAX LOAD (LBS) | 6175 |
| DOUBLE MAX LOAD (LBS) | 5675 |
| INFL.P. (PSI) | 6175 |
