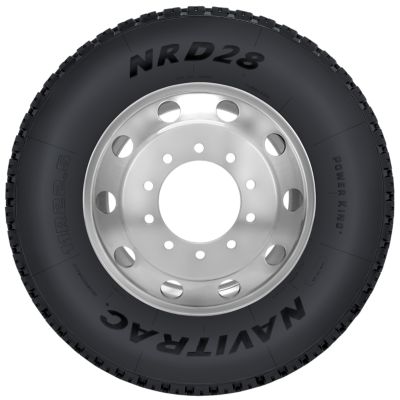

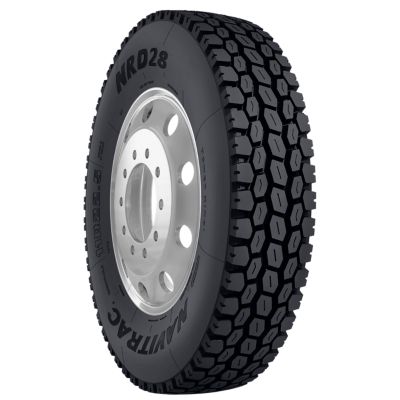

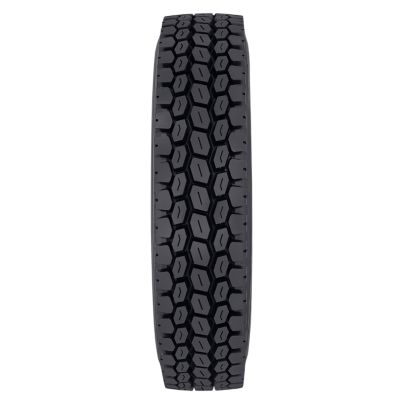

The Navitrac NRD28 features an aggressive, open shoulder tread design which improves self-cleaning to deliver exceptional traction in mud and snow. Its staggered tread block pattern distributes load evenly to resist irregular wear. The NRD28 is ideally suited for regional and local highway and mixed service applications.
| Article # | Size | LR/PR | ServiceDescription | Tread Depth(32NDS) | Type | R.W.(INCH) | O.D.(INCH) | S.W.(INCH) | SingleMax Load(lbs) | DoubleMax Load(lbs) | Infl. P.(psi) |
|---|
| PWKG-NRD28225195 | 225/70R19.5 | G/14 | 128/126L | 18 | TL | 6.75 | 32.2 | 8.9 | 3970 | 3750 | 110 |
| PWKG-NRD28245195 | 245/70R19.5 | H/16 | 135/133L | 18 | TL | 7.50 | 33.3 | 9.8 | 4805 | 4540 | 125 |
| PWKG-NRD2811225H | 11R22.5 | H/16 | 146/143M | 26 | TL | 8.25 | 41.5 | 11.0 | 6610 | 6005 | 120 |
| PWKG-NRD28295225 | 295/75R22.5 | H/16 | 146/143L | 26 | TL | 9.00 | 39.9 | 11.7 | 6610 | 6005 | 120 |
| PWKG-NRD2811245H | 11R24.5 | H/16 | 149/146M | 26 | TL | 8.25 | 43.5 | 11.0 | 7160 | 6610 | 120 |
| ARTICLE # | PWKG-NRD28225195 |
| SIZE | 225/70R19.5 |
| LR/PR | G/14 |
| SERVICE DESCRIPTION | 128/126L |
| TREAD DEPTH (32NDS) | 18 |
| TYPE | TL |
| R.W. (INCH) | 6.75 |
| O.D. (INCH) | 32.2 |
| S.W. (INCH) | 8.9 |
| SINGLE MAX LOAD (LBS) | 3970 |
| DOUBLE MAX LOAD (LBS) | 3750 |
| INFL.P. (PSI) | 3970 |
| ARTICLE # | PWKG-NRD28245195 |
| SIZE | 245/70R19.5 |
| LR/PR | H/16 |
| SERVICE DESCRIPTION | 135/133L |
| TREAD DEPTH (32NDS) | 18 |
| TYPE | TL |
| R.W. (INCH) | 7.50 |
| O.D. (INCH) | 33.3 |
| S.W. (INCH) | 9.8 |
| SINGLE MAX LOAD (LBS) | 4805 |
| DOUBLE MAX LOAD (LBS) | 4540 |
| INFL.P. (PSI) | 4805 |
| ARTICLE # | PWKG-NRD2811225H |
| SIZE | 11R22.5 |
| LR/PR | H/16 |
| SERVICE DESCRIPTION | 146/143M |
| TREAD DEPTH (32NDS) | 26 |
| TYPE | TL |
| R.W. (INCH) | 8.25 |
| O.D. (INCH) | 41.5 |
| S.W. (INCH) | 11.0 |
| SINGLE MAX LOAD (LBS) | 6610 |
| DOUBLE MAX LOAD (LBS) | 6005 |
| INFL.P. (PSI) | 6610 |
| ARTICLE # | PWKG-NRD28295225 |
| SIZE | 295/75R22.5 |
| LR/PR | H/16 |
| SERVICE DESCRIPTION | 146/143L |
| TREAD DEPTH (32NDS) | 26 |
| TYPE | TL |
| R.W. (INCH) | 9.00 |
| O.D. (INCH) | 39.9 |
| S.W. (INCH) | 11.7 |
| SINGLE MAX LOAD (LBS) | 6610 |
| DOUBLE MAX LOAD (LBS) | 6005 |
| INFL.P. (PSI) | 6610 |
| ARTICLE # | PWKG-NRD2811245H |
| SIZE | 11R24.5 |
| LR/PR | H/16 |
| SERVICE DESCRIPTION | 149/146M |
| TREAD DEPTH (32NDS) | 26 |
| TYPE | TL |
| R.W. (INCH) | 8.25 |
| O.D. (INCH) | 43.5 |
| S.W. (INCH) | 11.0 |
| SINGLE MAX LOAD (LBS) | 7160 |
| DOUBLE MAX LOAD (LBS) | 6610 |
| INFL.P. (PSI) | 7160 |
