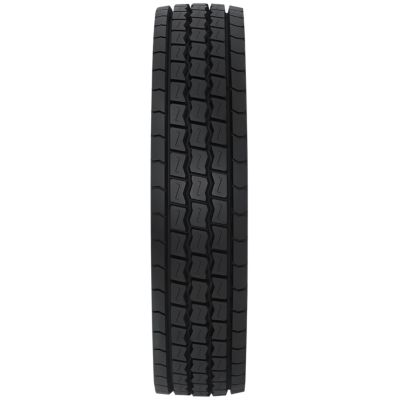

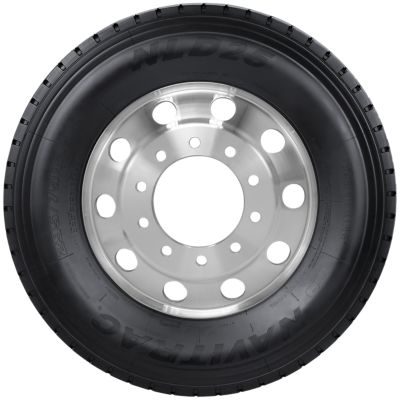

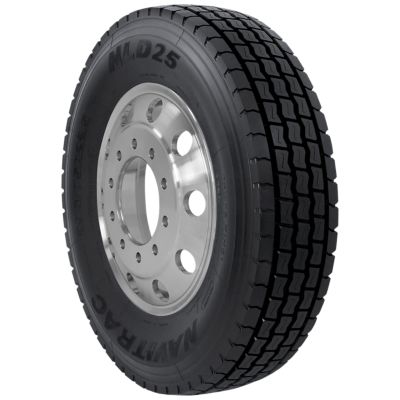

The Navitrac NLD25 closed shoulder drive tire features 27/32nds tread depth and 230 mm tread width for long tread life. Solid shoulder ribs deliver stability and resistance to uneven wear. The NLD25 is designed with three rows of aggressive tread blocks for traction and resistance to tread squirm. The NLD25 is ideally suited for line haul and regional highway applications.
| Article # | Size | LR/PR | ServiceDescription | Tread Depth(32NDS) | Type | R.W.(INCH) | O.D.(INCH) | S.W.(INCH) | SingleMax Load(lbs) | DoubleMax Load(lbs) | Infl. P.(psi) |
|---|
| PWKG-NLD2511225H | 11R22.5 | H/16 | 146/143L | 27 | TL | 8.25 | 42.2 | 11.0 | 6610 | 6005 | 120 |
| PWKG-NLD25295225 | 295/75R22.5 | G/14 | 144/141L | 27 | TL | 9.00 | 40.6 | 11.7 | 6175 | 5675 | 110 |
| PWKG-NLD2511245H | 11R24.5 | H/16 | 149/146L | 27 | TL | 8.25 | 44.2 | 11.0 | 7160 | 6610 | 120 |
| PWKG-NLD25285245 | 285/75R24.5 | G/14 | 144/141L | 27 | TL | 8.25 | 42.0 | 11.1 | 6175 | 5675 | 110 |
| ARTICLE # | PWKG-NLD2511225H |
| SIZE | 11R22.5 |
| LR/PR | H/16 |
| SERVICE DESCRIPTION | 146/143L |
| TREAD DEPTH (32NDS) | 27 |
| TYPE | TL |
| R.W. (INCH) | 8.25 |
| O.D. (INCH) | 42.2 |
| S.W. (INCH) | 11.0 |
| SINGLE MAX LOAD (LBS) | 6610 |
| DOUBLE MAX LOAD (LBS) | 6005 |
| INFL.P. (PSI) | 6610 |
| ARTICLE # | PWKG-NLD25295225 |
| SIZE | 295/75R22.5 |
| LR/PR | G/14 |
| SERVICE DESCRIPTION | 144/141L |
| TREAD DEPTH (32NDS) | 27 |
| TYPE | TL |
| R.W. (INCH) | 9.00 |
| O.D. (INCH) | 40.6 |
| S.W. (INCH) | 11.7 |
| SINGLE MAX LOAD (LBS) | 6175 |
| DOUBLE MAX LOAD (LBS) | 5675 |
| INFL.P. (PSI) | 6175 |
| ARTICLE # | PWKG-NLD2511245H |
| SIZE | 11R24.5 |
| LR/PR | H/16 |
| SERVICE DESCRIPTION | 149/146L |
| TREAD DEPTH (32NDS) | 27 |
| TYPE | TL |
| R.W. (INCH) | 8.25 |
| O.D. (INCH) | 44.2 |
| S.W. (INCH) | 11.0 |
| SINGLE MAX LOAD (LBS) | 7160 |
| DOUBLE MAX LOAD (LBS) | 6610 |
| INFL.P. (PSI) | 7160 |
| ARTICLE # | PWKG-NLD25285245 |
| SIZE | 285/75R24.5 |
| LR/PR | G/14 |
| SERVICE DESCRIPTION | 144/141L |
| TREAD DEPTH (32NDS) | 27 |
| TYPE | TL |
| R.W. (INCH) | 8.25 |
| O.D. (INCH) | 42.0 |
| S.W. (INCH) | 11.1 |
| SINGLE MAX LOAD (LBS) | 6175 |
| DOUBLE MAX LOAD (LBS) | 5675 |
| INFL.P. (PSI) | 6175 |
