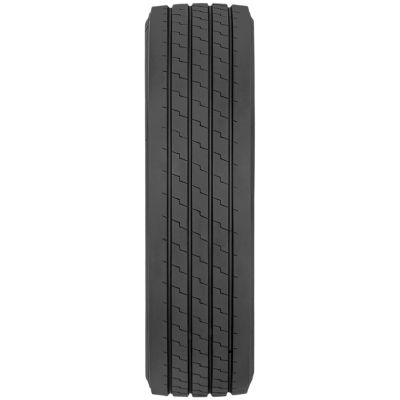

The Navitrac NLT22 is designed specifically for on highway trailer applications. The NLT22’s tread design resists irregular wear and minimizes skid wear. The 5-rib pattern is optimized for tread wear performance and low rolling resistance. The NLT22 is ideally suited for line haul and regional highway applications.
| Article # | Size | LR/PR | ServiceDescription | Tread Depth(32NDS) | Type | R.W.(INCH) | O.D.(INCH) | S.W.(INCH) | SingleMax Load(lbs) | DoubleMax Load(lbs) | Infl. P.(psi) |
|---|
| PWKG-NLT2211225G | 11R22.5 | G/14 | 144/142L | 11 | TL | 8.25 | 41.5 | 11.0 | 6175 | 5840 | 105 |
| PWKG-NLT22295225 | 295/75R22.5 | G/14 | 144/141L | 11 | TL | 9.00 | 39.9 | 11.7 | 6175 | 5675 | 110 |
| PWKG-NLT2211245G | 11R24.5 | G/14 | 146/143L | 11 | TL | 8.25 | 43.5 | 11.0 | 6610 | 6005 | 105 |
| ARTICLE # | PWKG-NLT2211225G |
| SIZE | 11R22.5 |
| LR/PR | G/14 |
| SERVICE DESCRIPTION | 144/142L |
| TREAD DEPTH (32NDS) | 11 |
| TYPE | TL |
| R.W. (INCH) | 8.25 |
| O.D. (INCH) | 41.5 |
| S.W. (INCH) | 11.0 |
| SINGLE MAX LOAD (LBS) | 6175 |
| DOUBLE MAX LOAD (LBS) | 5840 |
| INFL.P. (PSI) | 6175 |
| ARTICLE # | PWKG-NLT22295225 |
| SIZE | 295/75R22.5 |
| LR/PR | G/14 |
| SERVICE DESCRIPTION | 144/141L |
| TREAD DEPTH (32NDS) | 11 |
| TYPE | TL |
| R.W. (INCH) | 9.00 |
| O.D. (INCH) | 39.9 |
| S.W. (INCH) | 11.7 |
| SINGLE MAX LOAD (LBS) | 6175 |
| DOUBLE MAX LOAD (LBS) | 5675 |
| INFL.P. (PSI) | 6175 |
| ARTICLE # | PWKG-NLT2211245G |
| SIZE | 11R24.5 |
| LR/PR | G/14 |
| SERVICE DESCRIPTION | 146/143L |
| TREAD DEPTH (32NDS) | 11 |
| TYPE | TL |
| R.W. (INCH) | 8.25 |
| O.D. (INCH) | 43.5 |
| S.W. (INCH) | 11.0 |
| SINGLE MAX LOAD (LBS) | 6610 |
| DOUBLE MAX LOAD (LBS) | 6005 |
| INFL.P. (PSI) | 6610 |
