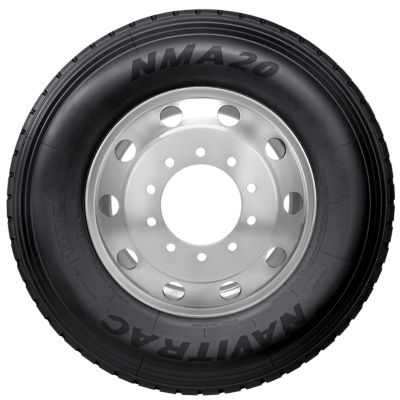

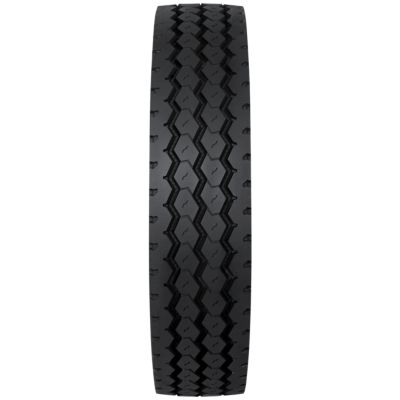

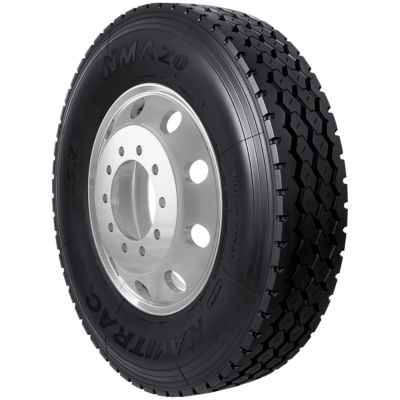

The Navitrac NMA20 is an all-position rib suitable for both on and off-road applications. The NMA20 was engineered with extended tread life in mind, and designed to deliver class-leading cut/chip resistance. The NMA20 is ideally suited for regional and local highway and mixed service applications.
| Article # | Size | LR/PR | ServiceDescription | Tread Depth(32NDS) | Type | R.W.(INCH) | O.D.(INCH) | S.W.(INCH) | SingleMax Load(lbs) | DoubleMax Load(lbs) | Infl. P.(psi) |
|---|
| PWKG-NMA2011225H | 11R22.5 | H/16 | 148/145L | 21 | TL | 8.25 | 41.5 | 11.0 | 6940 | 6395 | 123 |
| PWKG-NMA20255225 | 255/70R22.5 | H/16 | 140/137L | 18 | TL | 7.50 | 36.6 | 10.0 | 5510 | 5070 | 120 |
| PWKG-NMA20315225 | 315/80R22.5 | L/20 | 161/157G | 21 | TL | 9.00 | 42.4 | 12.3 | 10200 | 9090 | 130 |
| PWKG-NMA2011245H | 11R24.5 | H/16 | 149/146L | 21 | TL | 8.25 | 43.5 | 11.0 | 7160 | 6610 | 120 |
| ARTICLE # | PWKG-NMA2011225H |
| SIZE | 11R22.5 |
| LR/PR | H/16 |
| SERVICE DESCRIPTION | 148/145L |
| TREAD DEPTH (32NDS) | 21 |
| TYPE | TL |
| R.W. (INCH) | 8.25 |
| O.D. (INCH) | 41.5 |
| S.W. (INCH) | 11.0 |
| SINGLE MAX LOAD (LBS) | 6940 |
| DOUBLE MAX LOAD (LBS) | 6395 |
| INFL.P. (PSI) | 6940 |
| ARTICLE # | PWKG-NMA20255225 |
| SIZE | 255/70R22.5 |
| LR/PR | H/16 |
| SERVICE DESCRIPTION | 140/137L |
| TREAD DEPTH (32NDS) | 18 |
| TYPE | TL |
| R.W. (INCH) | 7.50 |
| O.D. (INCH) | 36.6 |
| S.W. (INCH) | 10.0 |
| SINGLE MAX LOAD (LBS) | 5510 |
| DOUBLE MAX LOAD (LBS) | 5070 |
| INFL.P. (PSI) | 5510 |
| ARTICLE # | PWKG-NMA20315225 |
| SIZE | 315/80R22.5 |
| LR/PR | L/20 |
| SERVICE DESCRIPTION | 161/157G |
| TREAD DEPTH (32NDS) | 21 |
| TYPE | TL |
| R.W. (INCH) | 9.00 |
| O.D. (INCH) | 42.4 |
| S.W. (INCH) | 12.3 |
| SINGLE MAX LOAD (LBS) | 10200 |
| DOUBLE MAX LOAD (LBS) | 9090 |
| INFL.P. (PSI) | 10200 |
| ARTICLE # | PWKG-NMA2011245H |
| SIZE | 11R24.5 |
| LR/PR | H/16 |
| SERVICE DESCRIPTION | 149/146L |
| TREAD DEPTH (32NDS) | 21 |
| TYPE | TL |
| R.W. (INCH) | 8.25 |
| O.D. (INCH) | 43.5 |
| S.W. (INCH) | 11.0 |
| SINGLE MAX LOAD (LBS) | 7160 |
| DOUBLE MAX LOAD (LBS) | 6610 |
| INFL.P. (PSI) | 7160 |
